Agent for German EA plug ball valve TT111423

Herna SupplyAgent for German EA plug ball valve TT111423Directly purchased from the German headquarters, with nearly 30 years of experience in importing industrial products, original products, and support for selection, we provide you with one-on-one solutions: stable delivery time, competitive pricing, and 8 major offices in China to provide relevant after-sales services.

Company Profile

END Armauren GmbH&Co. KG (EA for short) is a well-known enterprise specializing in the design, manufacturing, and sales of industrial valves. It was founded in 1980 and is headquartered in Germany. The company enjoys a high reputation in the field of global industrial valves for its high-quality products and innovative technology, especially widely used in industries such as chemical, power, food and beverage, water treatment, etc

Product category:

EA two-way ball valve

EA three-way ball valve

EA four-way ball valve

EA high-pressure ball valve

EA faucet ball valve

EA water filling/drainage ball valve

EA Mini Ball Valve

EA actuator

EA butterfly valve

EA pressure driven valve

EA gate valve

EA pressure relief valve

EA overflow valve

EA flange

EA connector

Main models:

EA four-way ball valve GV311623

EA four-way ball valve GV311623-OE620520

EA four-way ball valve GV311624

EA four-way ball valve GV311625

EA high-pressure ball valve MB391021

EA high-pressure ball valve MB391022

EA high-pressure ball valve MB391023

EA high-pressure ball valve MB491020

EA plug ball valve TT111422

Product Introduction

SKU

TT111423

description

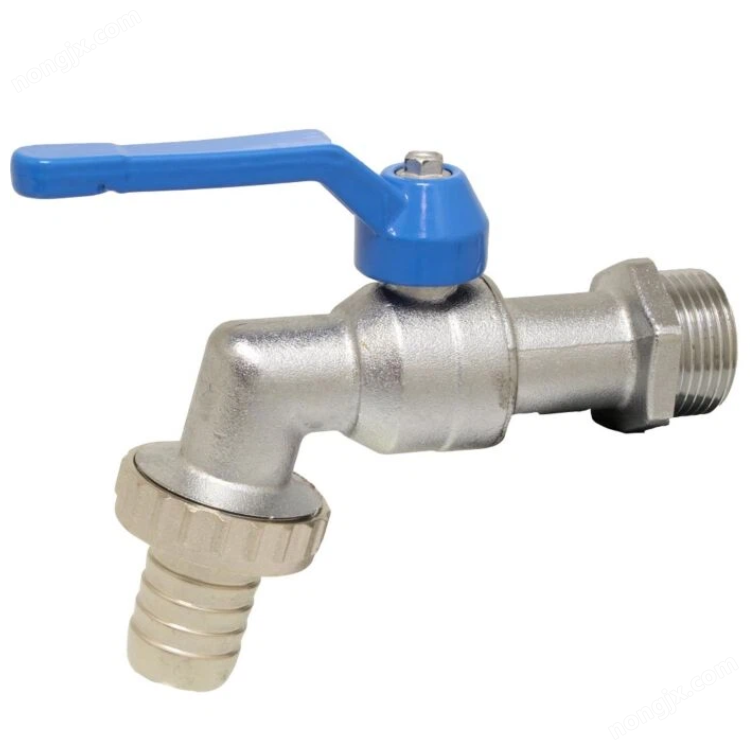

Spherical drain plug 1/2 inch, made of brass/PTFE FKM material, PN16， Male connector/hose connection

Weight [kg]

　　0.238000

size

1/2 inch

Valve body material

brass

Sealing material

PTFE

Valve stem seal material

FKM

Operation method

Handle lever type

connection type

Male connector/Male connector

connection size

1/2 inch

Nominal pressure maximum | low value [bar]

　　0

Nominal pressure maximum | high value [bar]

　　16

Valve body pressure test pressure PT [bar]

　　24

Temperature range maximum | Low value [° C]

　　-0

Temperature Range | High Value [° C]

　　+80

Medium temperature zui | low value [° C]

　　-20

Medium temperature maximum | high value [° C]

　　+120

Valve body structure

Two-part formula

Tariff number

　　84818081

RoHS Directive (EC 2015/863)

meet the requirements

REACH Regulation (EC 1907/2006)

meet the requirements

Advantages and Features:

Quick shutdown: Rotate 90 ° to achieve instantaneous switching, suitable for emergency cut-off scenarios.

Low flow resistance design: The full bore structure reduces pressure loss and is suitable for high flow applications.

Easy maintenance: Modular sealing components support quick replacement, reducing downtime.

Complete certification: Passed ISO 9001 quality management system and CE, PED certification.

Main applications:

beverage industry

food industry

Installation of sanitary facilities

heating system

Drinking water facilities

Craft industry

Solar energy industry

Industrial and Building Technology
