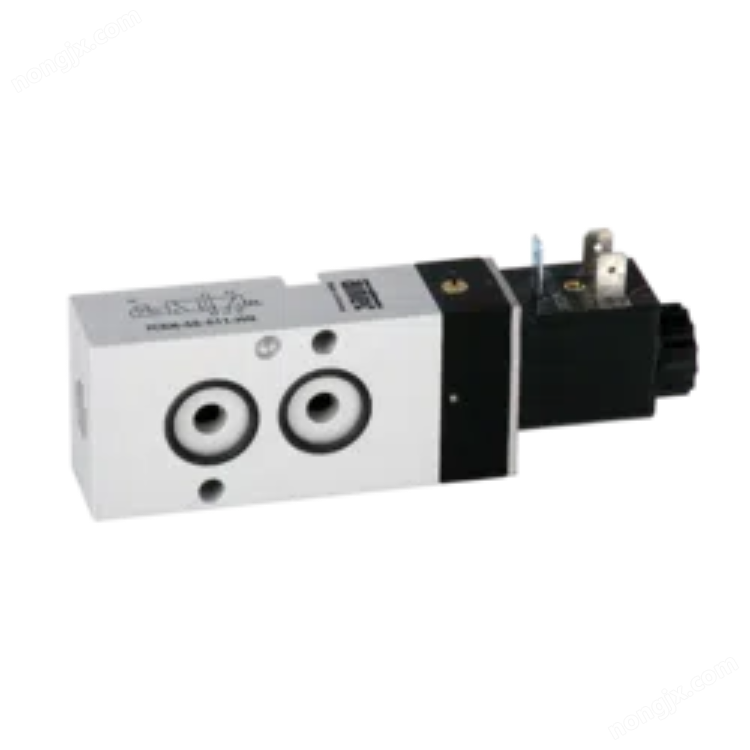

Agent for German Airtec electric solenoid valve MI02

Hera Trade SupplyAgent for German Airtec electric solenoid valve MI02With nearly 30 years of experience in industrial products, original products, selection, and solutions for you: stable delivery time, with 8 major offices providing services in China.

Product category:

Electric solenoid valve

Pneumatic solenoid valve

Mechanical execution solenoid valve

Valve Terminal

Piston rod cylinder

Rodless cylinder

Proportional air conditioner

Air handling unit

piston valve

Main models:

Low temperature electric solenoid valve KMX09

Low temperature electric solenoid valve KMX10

Electric solenoid valve M series

Electric solenoid valve KM series

Electric solenoid valve ICK series

Electric solenoid valve KMX series

Electric solenoid valve BM series

Electric solenoid valve KN series

Electric solenoid valve ICKN series

Electric solenoid valve KNX series

MN series electric solenoid valve

Electric solenoid valve MI series

Electric solenoid valve MS series

Electric solenoid valve 86-MV-3 series

Electric solenoid valve 86-MV-5 series

Electric solenoid valve 86-MN series

Electric solenoid valve 86-MS-3V series

Electric solenoid valve MF series

Electric solenoid valve MC series

Product Introduction

technical details

Connection method: ISO 5599/1

Nominal size: 9 mm -14 mm

Temperature range: -10 ° C to+70 ° C

Protection level: IP 65

ATEX: Optional

Model:

5/2 channel, 5/3 channel

Available voltage:

直流： 12 V、24 V

Communication: 24V, 115V, 230V

Connection method: ISO 5599/1

Nominal size:

Size 1: 9 mm

Size 2:13 mm

Size 3:14 mm

Temperature range: -10 ° C...+70 ° C

Media: Compressed air that has been filtered, oil-free, and dried, in accordance with ISO 8573-1:2010 standard, grade 7:2:4; Instrument gas, without corrosive additives. If different requirements are required, the pressure dew point must be at least 10 ° C lower than the low ambient temperature.

Material

Valve body: Aluminum (anodized)

Seals: NBR and POM

Internal components: aluminum, stainless steel, and brass

Protection level: IP65 (compliant with EN 60529 standard)

Features:

·Flexible installation: Both the coil and plug can rotate to adapt to different wiring directions.

·Manual emergency: With a positioning manual operating mechanism, the valve can still be controlled during power outages or debugging.

·Modular design: Can be combined with valve plates, supports multi station expansion, and is easy to install.

·High reliability: Compliant with ISO standards, suitable for long-term stable operation in industrial environments.

Main applications:

Airtec solenoid valves are widely used in industrial production, HVAC, water treatment, gas transmission and distribution, chemical engineering, oil and gas transportation, and building intelligence.
