CF905B/CF906B is a corn harvesting machinery independently developed by Changfa Agricultural Equipment. The machine adopts static hydraulic drive technology, which is comfortable to operate and has high work efficiency. It can achieve the tasks of picking ears, conveying, peeling, packing corn crops, and straw crushing and returning to the field

Product Details

Abundant power, fast operation

Equipped with a 200 horsepower Yuchai six cylinder engine, it runs through the fields and harvests quickly.

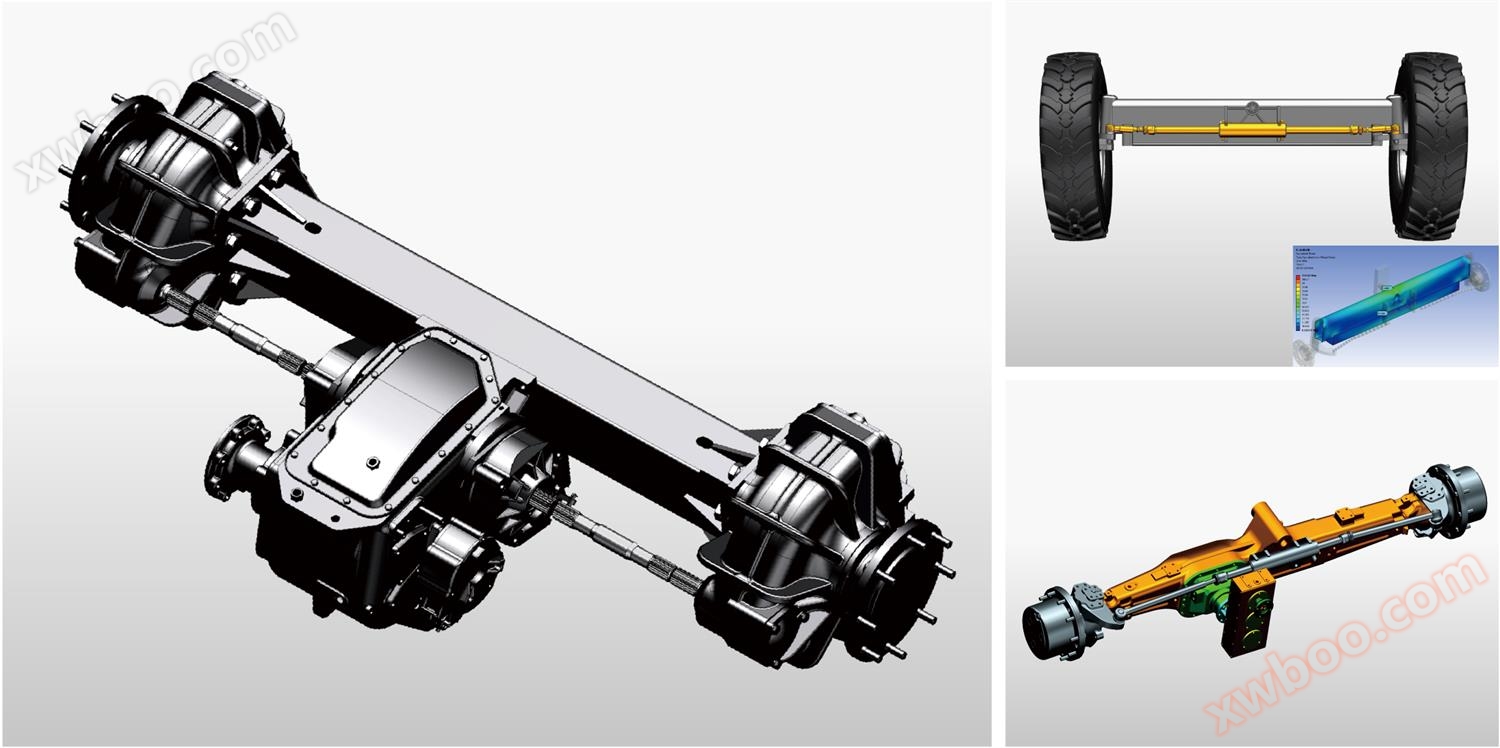

The product adopts the same front axle, rear axle, and four-wheel drive as the Northeast large grain machine.

Upgrade the hydraulic walking system, increase the displacement of pumps and motors, enhance traction, and improve reliability.

Turning radius of 7.2m, flexible turning.

Technological upgrade with outstanding performance

Host upgrade:

The bridge bearing adopts imported enlarged bearings and improves the sealing protection level, resulting in higher reliability.

The speed of the bridge crossing and lifting system has been readjusted, resulting in smoother and less damaging ear transportation.

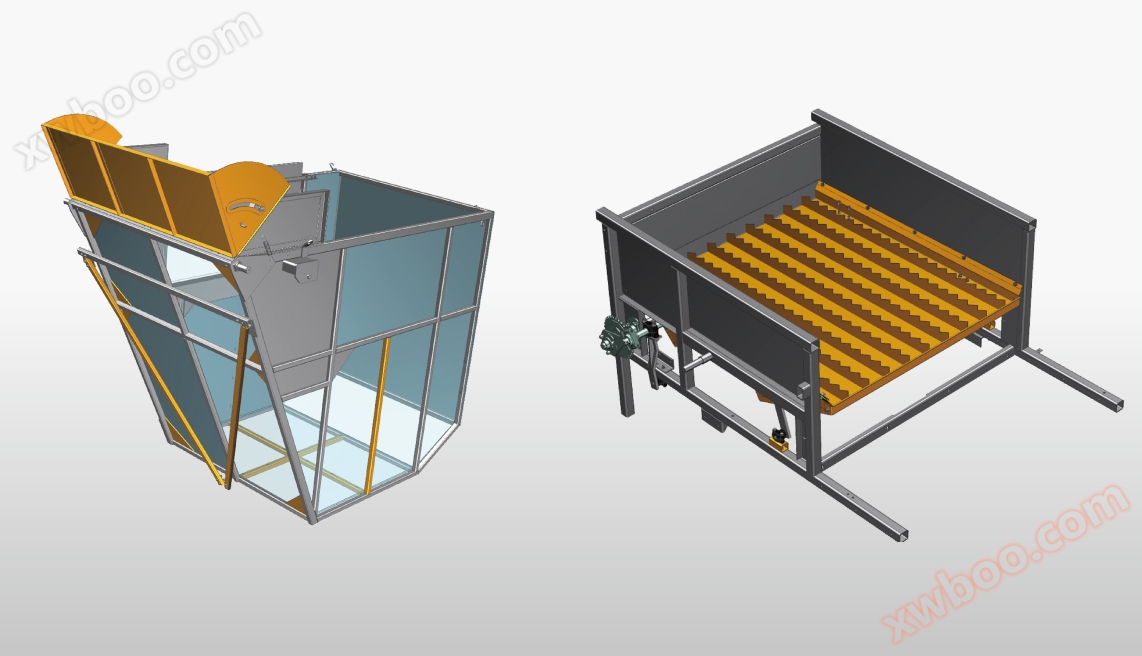

Optimization of the impurity removal system, improvement of the impurity removal outlet structure, adjustment of the fan position and blade group, and stronger impurity removal capability.

Upgrade the secondary stem pulling to a floating structure, significantly reducing the frequency of blockage.

Optimization of the separation system of the peeling machine, with good separation effect and no accumulation of fruit clusters.

The rubber roller of the peeling machine is installed in a positive and negative combination, which reduces grain loss while ensuring the peeling rate.

Grain recycling has increased the channel for returning grains to the grain silo and added grain fans, greatly improving its practicality.

The diesel tank has a capacity of 300 liters, meeting daily fuel needs, reducing refueling frequency, and improving operational efficiency.

Adopting an integrated radiator, the radiator has good heat dissipation performance, is not easy to block, is convenient to clean, and reduces non operational time.

Configure a 5-cubic meter large grain silo with a unloading height of 3.1 meters, resulting in an overall weight gain of 20% and higher reliability.

Increase the grain storage capacity by 47%, reduce the frequency of grain unloading, and achieve higher overall efficiency.

Set up a maintenance platform to make daily maintenance more convenient and safe for users.

The electrical and hydraulic circuits of the entire vehicle have been rearranged neatly, reasonably, and with high reliability.

Cutting platform upgrade:

We offer eight imported technology cutting tables: 5550, 5600, 5620, 5650, 6500, 6550, 6600, and 6650.

The bridge axle has been upgraded to high-quality alloy steel, with the addition of multiple non-destructive testing processes for higher reliability.

The position of the bridge axis has been moved downwards, and the bridge cavity has been raised by 105 millimeters to improve the transportation capacity of the bridge.

The angle of the cutting table is reduced to 15 °, resulting in better lodging effect.

Wide field of vision, comfortable driving experience

The luxurious cockpit adopts scientific ergonomics design to create a brand new user experience.

Sound insulation and shock absorption, newly upgraded, good communication environment.

Equipped with original air conditioning, it has good cooling effect and is suitable for continuous operation.

The console has been upgraded to an armrest box structure, making driving easier.

6 LED front working headlights with high brightness and wide illumination range, making night work more convenient.
